What it is
A label feeder is a servo-driven supply unit that takes a reel of pre-printed labels and presents them one row at a time at the position where the placement machine’s nozzle picks up components. The label is then placed in the same pass as the components, on the same machine, without a separate labeling station.
The unit is keyed to two things: the placement machine it mounts on, and the widest label it has to handle.
From the product brochure
These are the manufacturer’s own bullet points for this range.
- Mounts on the placement machine and applies labels in the placement pass
- Touch panel control, English and Chinese
- Single-column and multi-column material
- Non-standard builds supported
Where models differ: FUJI label feeder: Single-column material only；Retract-stripping label feeder: Single-column material
Specifications
These values are common to the reel-fed label feeder range.
| Item | Specification |
|---|---|
| Positioning accuracy | ±0.2 mm |
| Feeding speed | 1–100, adjustable |
| Angle accuracy | ±0.5° |
| Position adjustment | Fiber sensor + touch panel |
| Feeding cycle | 0.1–2 s |
| Stripping method | Forward push stripping |
| Communication signals | Material signal + feeding signal |
| Supply voltage | DC 24 V |
| Supply current | 80 mA average; 1 A peak |
| Drive motor | Servo motor |
| Applicable package | Roll paper tape, packaging tape |
| Suitable material | Labels, metal pieces, foam, thermal pads |
| Reel diameter | Bore 76.2 mm, outer diameter 200 mm (other sizes on request) |
| Production counter | 0–9,999,999 cycles |
| Body material | Hard aluminium + steel parts, surface finished |
| Anti-stick platform | PTFE coated; white or red silicone optional |
| Operation | Touch panel, English / Chinese |
| Warranty | One year |
Model selection
Models are grouped by the placement machine they fit, then by the structure variants for non-standard platforms. All dimensions are the feeder’s own outer envelope in millimetres.

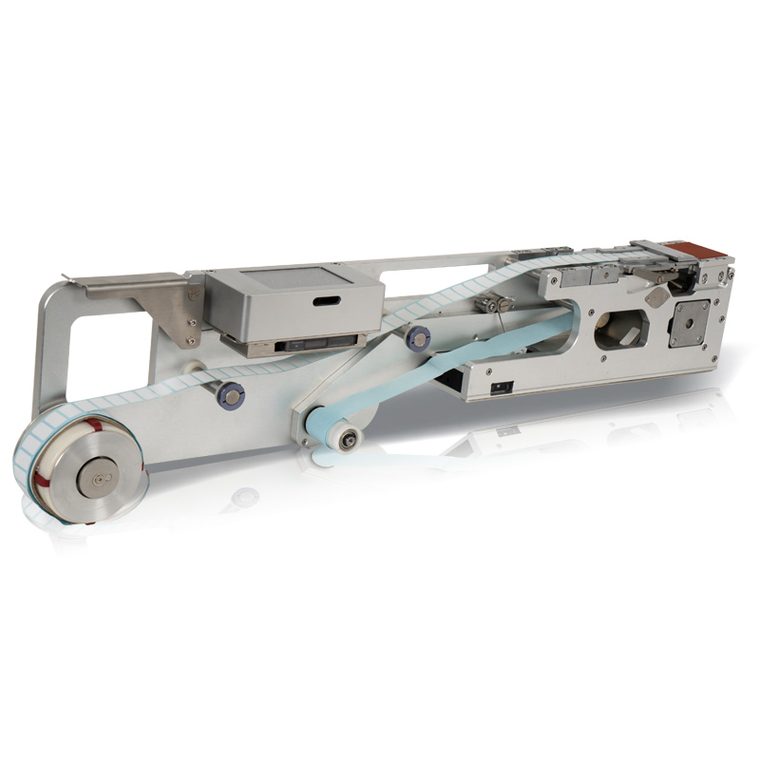

FUJI label feeder · NXT series placement machines
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFFUJI-100 | 660*140*170 | 5.6 | 2-58 | L2-40 | 1 |
| LFFUJI-32 | 630*40*170 | 3.6 | 2-23 | L2-40 | 1 |

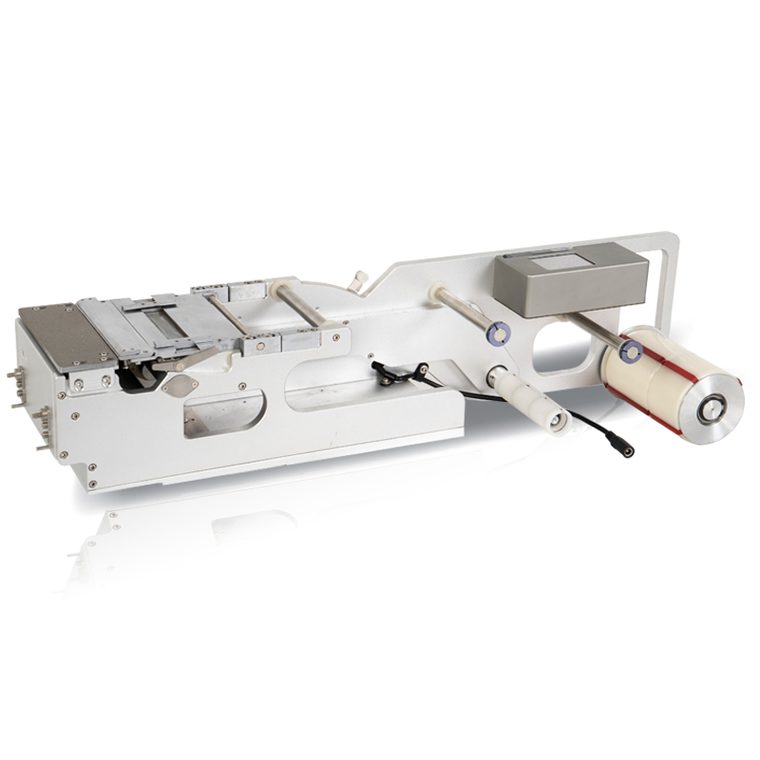

JUKI label feeder · KE700 / KE2000 / FX / JX / JM series
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFJUKI-100 | 640*135*160 | 7.5 | 5-98 | L2-40 | 1-12 |
| LFJUKI-32 | 630*40*170 | 3.8 | 5-23 | L2-40 | 1 |

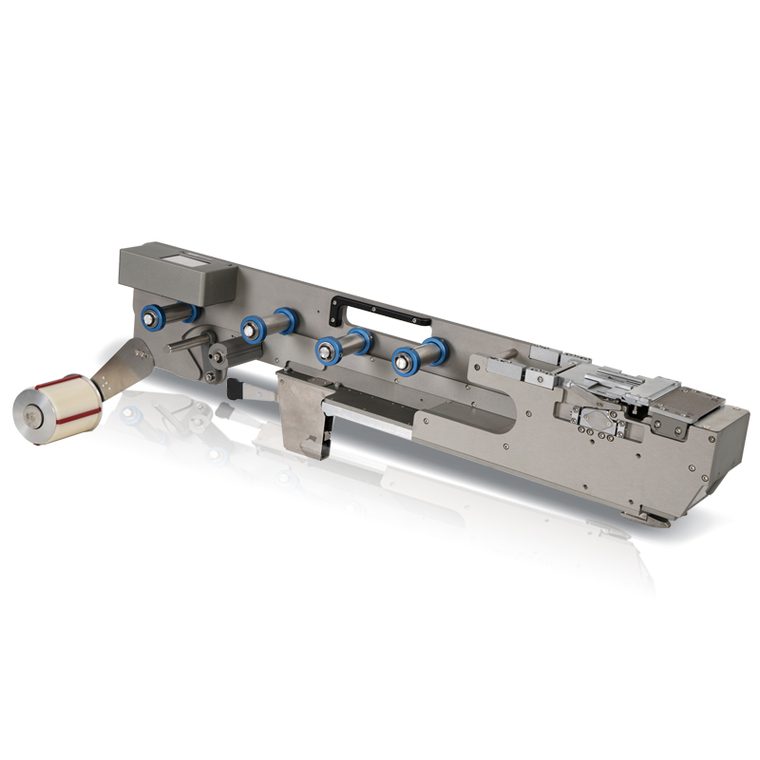

PANASONIC label feeder · NPM / CM602 / CM402
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFPANA-100 | 890*135*280 | 9.3 | 2-98 | L2-40 | 1-12 |
| LFPANA-60 | 890*90*280 | 7.8 | 2-58 | L2-40 | 1-8 |
| LFPANA-32 | 850*40*200 | 5.5 | 2-23 | L2-40 | 1 |

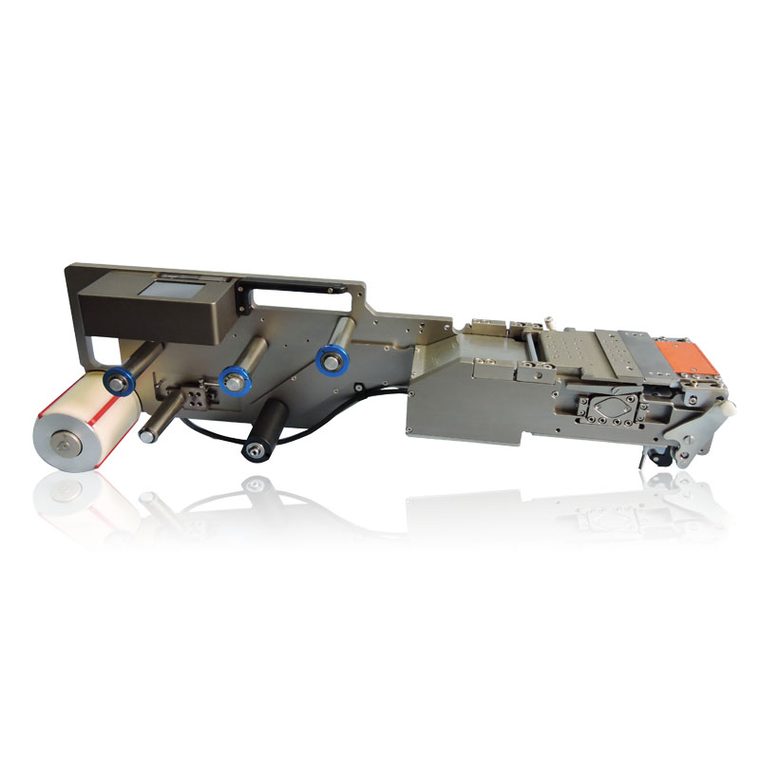

YAMAHA label feeder - YS series · YAMAHA YS series (YS24, YS12 and others)
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFYAMAHA-32 YS | 620*40*170 | 3.6 | 5-23 | L2-40 | 1 |
| LFYAMAHA-60 YS | 620*90*205 | 5 | 5-58 | L2-40 | 1-8 |
| LFYAMAHA-100 YS | 620*140*205 | 5.7 | 5-98 | L2-40 | 1-12 |
YAMAHA label feeder - YV series · YAMAHA YV series (YV88, YV100 and others)
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFYAMAHA-60 YV | 620*90*205 | 5 | 5-58 | L2-40 | 1-8 |
| LFYAMAHA-100 YV | 620*140*205 | 5.7 | 5-98 | L2-40 | 1-12 |
| LFYAMAHA-150 YV | — | — | — | — | — |

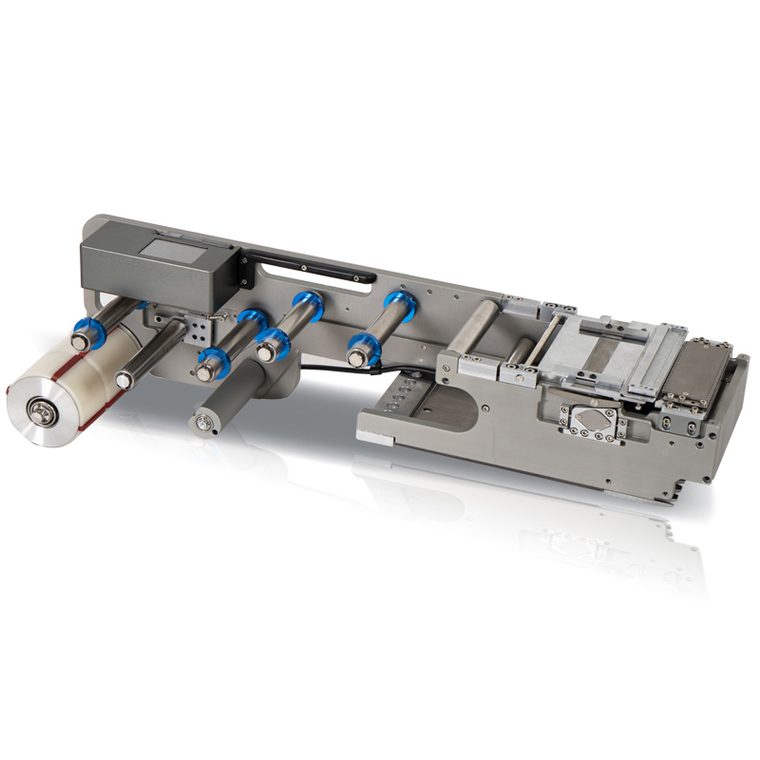

ASM D series label feeder · ASM D series, HS50, HS60
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFSID-100 | 640*135*155 | 8.6 | 2-98 | L2-40 | 1-12 |
| LFSID-60 | 710*90*255 | 6.1 | 2-58 | L2-40 | 1-8 |
| LFSID-32 | 635*45*180 | 3.5 | 2-23 | L2-40 | 1 |

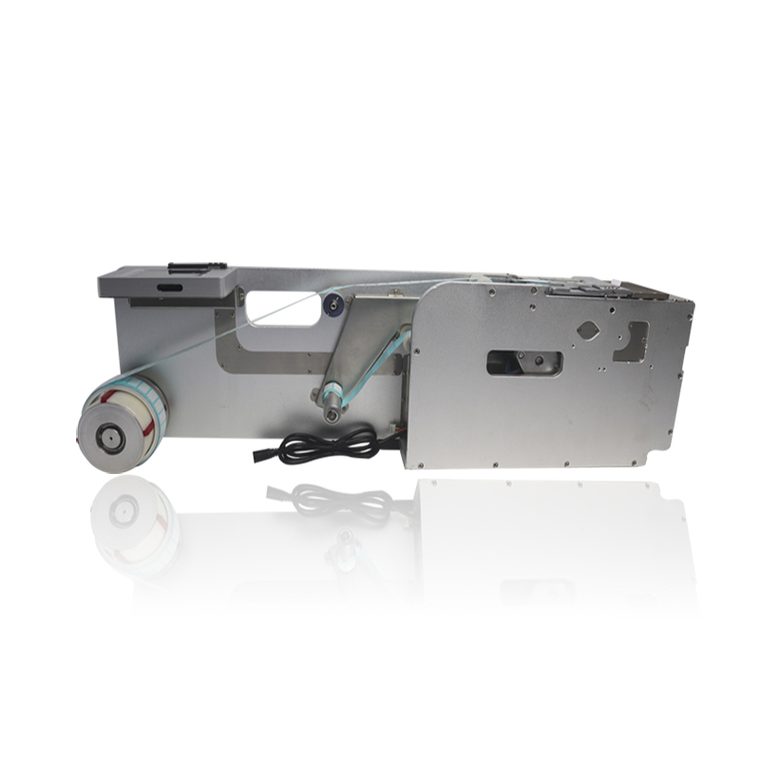

ASM X series label feeder · ASM X series placement machines (original or external power supply)
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFSIX-60 | 645*95*190 | 7.2 | 2-58 | L2-40 | 1-8 |
| LFSIX-32 | 750*45*190 | 5.5 | 2-23 | L2-40 | 1 |

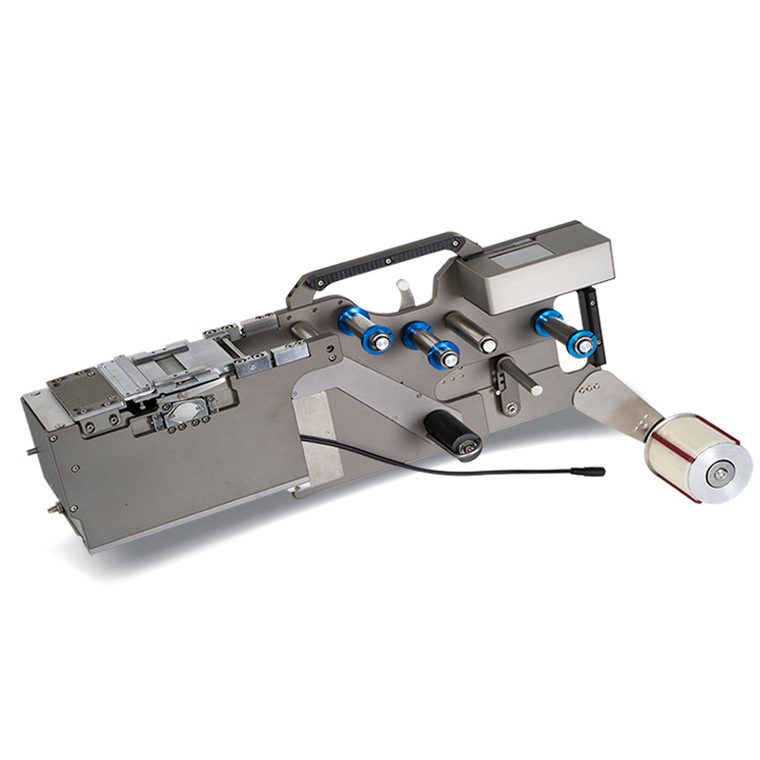

Samsung (Hanwha) label feeder · SM series (320 / 321 / 411 / 411F / 421 / 431 / 471 / 481 / 482)
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFSUMSUNG-60 | 670*90*265 | 6 | 2-58 | L2-40 | 1-8 |
| LFSUMSUNG-100 | — | — | — | — | — |

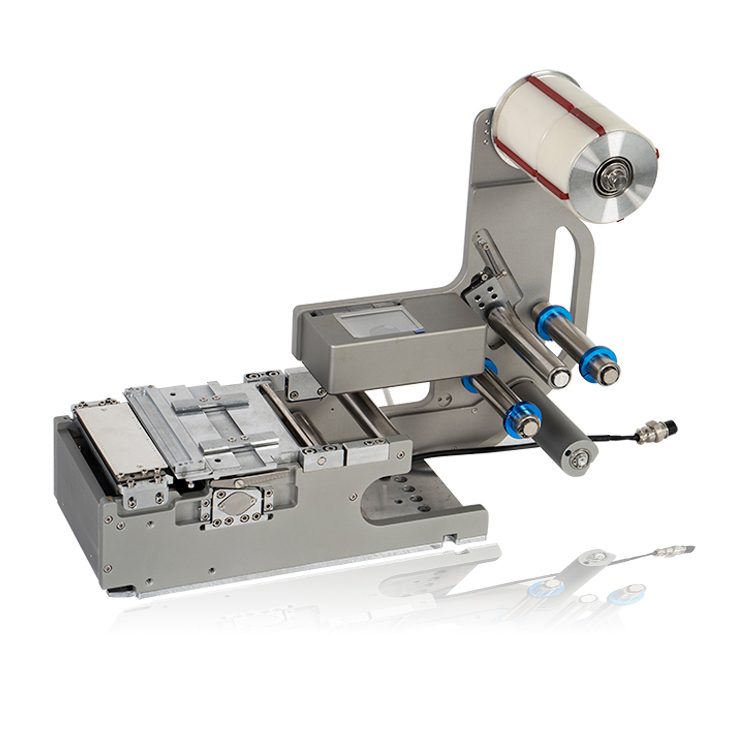

Standard label feeder - upper screen · Non-standard automation / custom placement machines; touch panel facing up
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFSID-60S L/R | 450*90*320 | 6.5 | 5-58 | L2-40 | 1-6 |
| LFSID-100S L/R | 450*135*320 | 8 | 5-98 | L2-40 | 1-8 |
| LFSID-150S L/R | 450*170*320 | 9.5 | 5-148 | L2-40 | 1-12 |
| LFSID-200S L/R | 450*220*320 | 17 | 5-198 | L2-40 | 1-14 |
| LFSID-250S L/R | 570*380*410 | 20 | 5-248 | L2-40 | 1-14 |
MINI label feeder · Non-standard placement machines and automation equipment
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFSID-60M L/R | 310*160*280 | 2.65 | 5-59 | L2-40 | 1-6 |
| LFSID-100M L/R | 340*210*280 | 4.5 | 5-98 | L2-40 | 1-8 |
Classic label feeder · Reel material; non-standard labeling machines and automation equipment
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFS-60 L/R | 450*100*340 | 6.2 | 5-58 | L2-40 | 1-6 |
| LFS-100 L/R | 450*150*340 | 8 | 5-98 | L2-40 | 1-8 |
| LFS-150 L/R | 450*200*340 | 9.5 | 5-148 | L2-40 | 1-12 |
| LFS-60 打孔 | — | — | — | — | — |

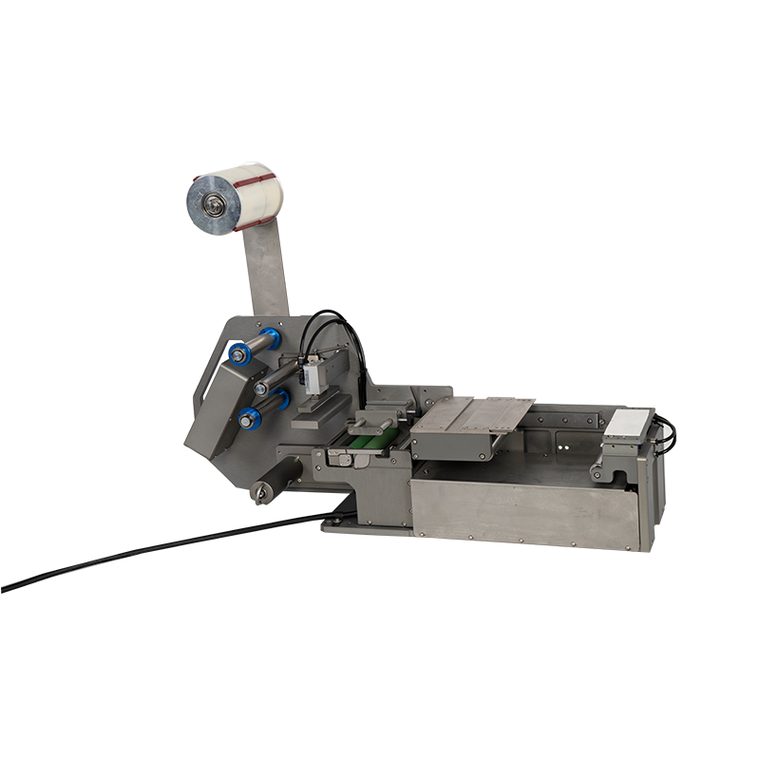

Retract-stripping label feeder · Automation equipment / non-standard builds; adhesive side down
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFHZXB-60 | 460*110*350 | 7 | 2-58 | L10-70 | 1 |
| LFHZXB-100 | 620*155*440 | 13 | 2-98 | L10-70 | 1 |
| LFHZXB-150 | 620*240*500 | 18 | 2-148 | L10-70 | 1 |

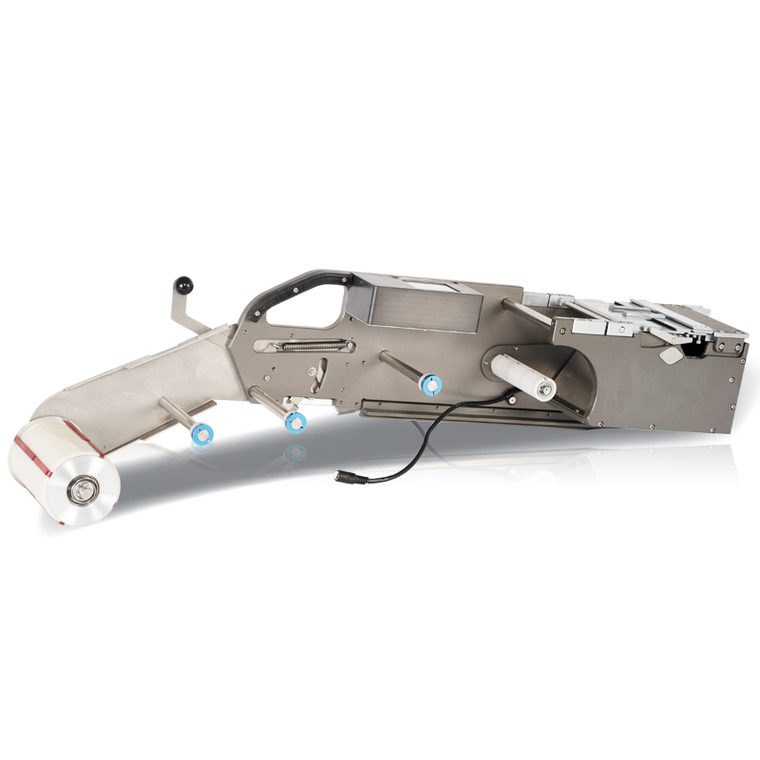

Universal (UNI) label feeder · Universal UNI placement machines
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFUNI-100 | — | — | — | — | — |

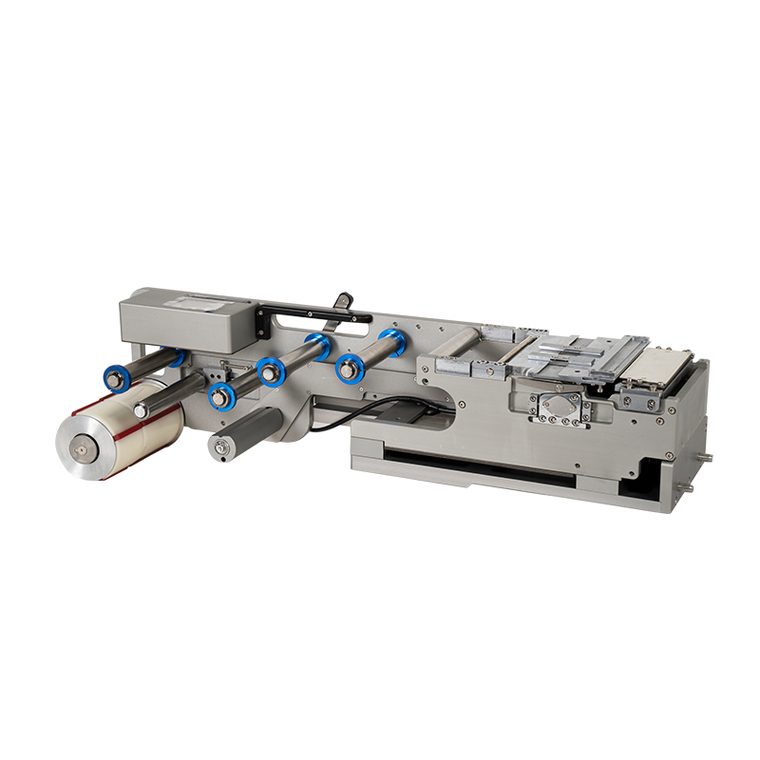

MIRAE label feeder · MIRAE placement machines
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| MIRAE | — | — | — | — | — |

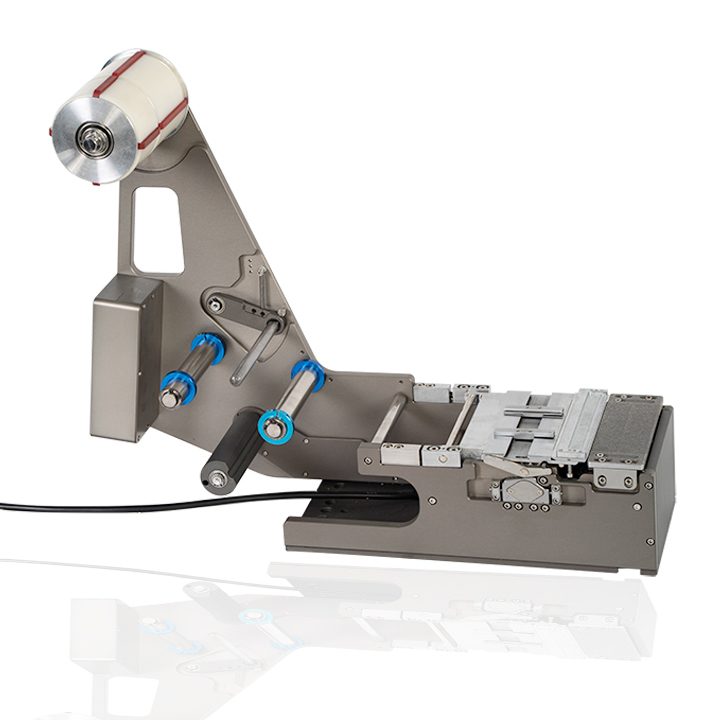

Short rear-screen label feeder (SIU) · Non-standard automation / custom placement machines; touch panel at the rear
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFSIU-60SR/L | — | — | — | — | — |
| LFSIU-100SR/L | — | — | — | — | — |

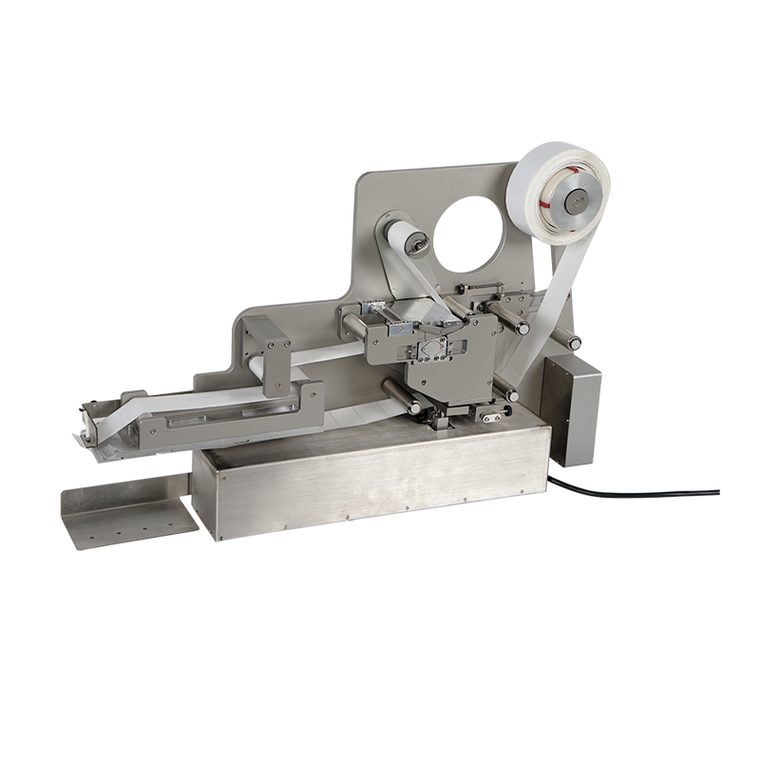

Retract-stripping label feeder with upper peeling (HZS) · Automation equipment / non-standard builds
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFHZS-60R | — | — | — | — | — |
Retract-stripping label feeder, standard peeling (HZ) · Automation equipment / non-standard builds
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFHZ-200R/L | — | — | — | — | — |
| LFHZ-100R/L | — | — | — | — | — |
| LFHZ-60S R/L | — | — | — | — | — |
Peel-and-stick tab feeder (YSDF) · Automation equipment / non-standard builds
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| YSDF-60 | — | — | — | — | — |
Cut-to-length feeder (TCT) · Automation equipment / non-standard builds
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFTCT-60 | — | — | — | — | — |
Reverse-peeling label feeder (XB) · Automation equipment / non-standard builds
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFXB60 L/R | — | — | — | — | — |
Mobile labeling module (MMD) · Automation equipment / non-standard builds
| Model | L×W×H (mm) | Weight (kg) | Label width (mm) | Label length (mm) | Fiber sensors |
|---|---|---|---|---|---|
| LFMMD-60 | — | — | — | — | — |
Built for these machines
The photographs below are the production units. Model codes are listed under each group; the full table with dimensions, weights and label ranges is above.
Notes on the range
- Reel bore is 76.2 mm and outer diameter 200 mm. Other reel sizes can be made to order.
- Label length can be customized, and the number of columns follows the material.
- The feeder is designed for DC 24 V. The supply must be able to deliver more than 2 A; the 80 mA average and 1 A peak figures describe what the feeder draws, not what the supply must provide.
- When placement speed is not the constraint, a feeding speed of 30–50 holds the label steadier at the pickup point.
- Materials other than paper labels are handled on the same unit: FPC stiffening steel sheet, Mylar tape, foam, thermal pads, dust mesh and high-temperature tape on roll.
Detail pages for models in this line
Models with complete technical documentation are listed below. Open a model to see its full specifications and configuration.
- LFFUJI-100 — Label feeder (reel)
- LFFUJI-32 — Label feeder (reel)
- LFJUKI-100 — Label feeder (reel)
- LFJUKI-32 — Label feeder (reel)
- LFPANA-100 — Label feeder (reel)
- LFPANA-60 — Label feeder (reel)
- LFPANA-32 — Label feeder (reel)
- LFSID-100 — Label feeder (reel)
- LFSID-100S L/R — Label feeder (reel)
- LFSID-100M L/R — Label feeder (reel)
- LFS-60 L/R — Label feeder (reel)
- LFS-100 L/R — Label feeder (reel)
- LFS-150 L/R — Label feeder (reel)
Frequently Asked Questions
Which BestFeeder label feeder fits a FUJI NXT machine?
The FUJI NXT prefix is LFFUJI, and two models are published: LFFUJI-100 for labels up to 100 mm wide and LFFUJI-32 for labels up to 32 mm. Both mount in a feeder slot on the placement platform and present the label at the nozzle pickup point, so the label is placed in the same pass as the components.
What label width and column count does the label feeder range cover?
The reel-fed range covers 2 mm to 248 mm label width with 1 to 14 columns per feed. LFSID-250S on the standard upper-screen body is the widest, reaching 248 mm with up to 14 columns. Positioning accuracy is ±0.2 mm and angle accuracy ±0.5° across the range, so no model trades accuracy for width.
What power and reel size does a BestFeeder label feeder need?
The feeder runs on DC 24 V and the supply must deliver more than 2 A; the 80 mA average and 1 A peak on the datasheet describe draw, not the supply rating. The standard reel takes a 76.2 mm bore and a 200 mm outer diameter, and other reel sizes can be made to order.
