LFS-150 L/R
Label Feeder · Non-standard labeling machines and automation equipment

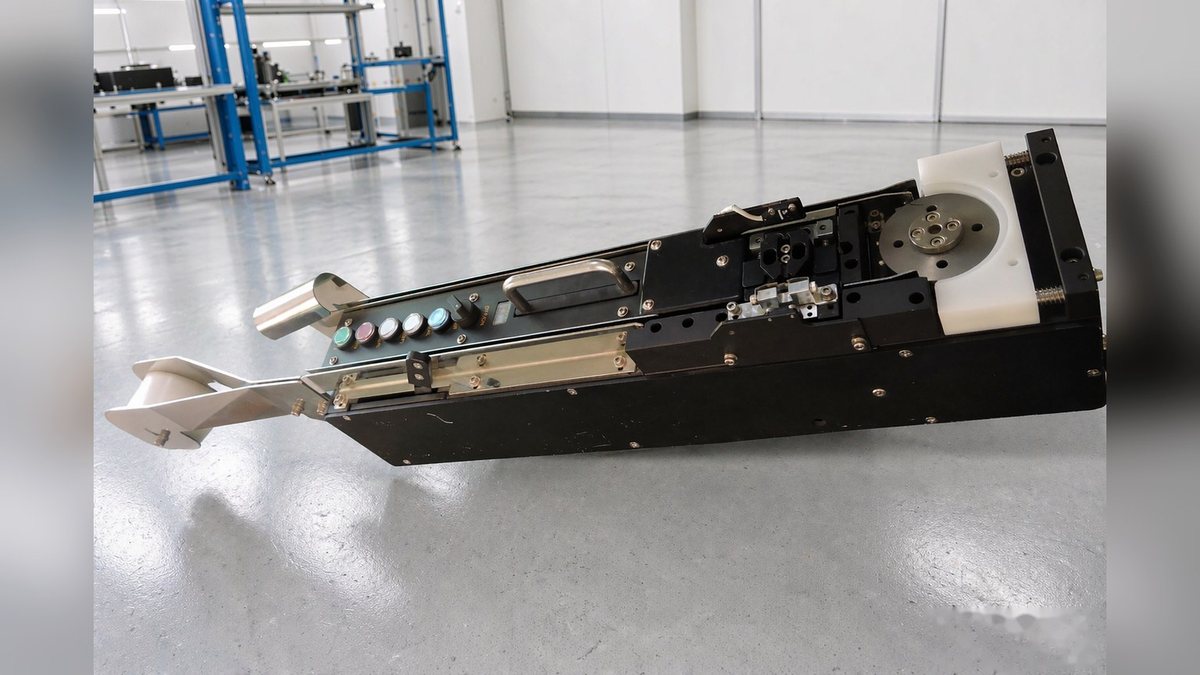

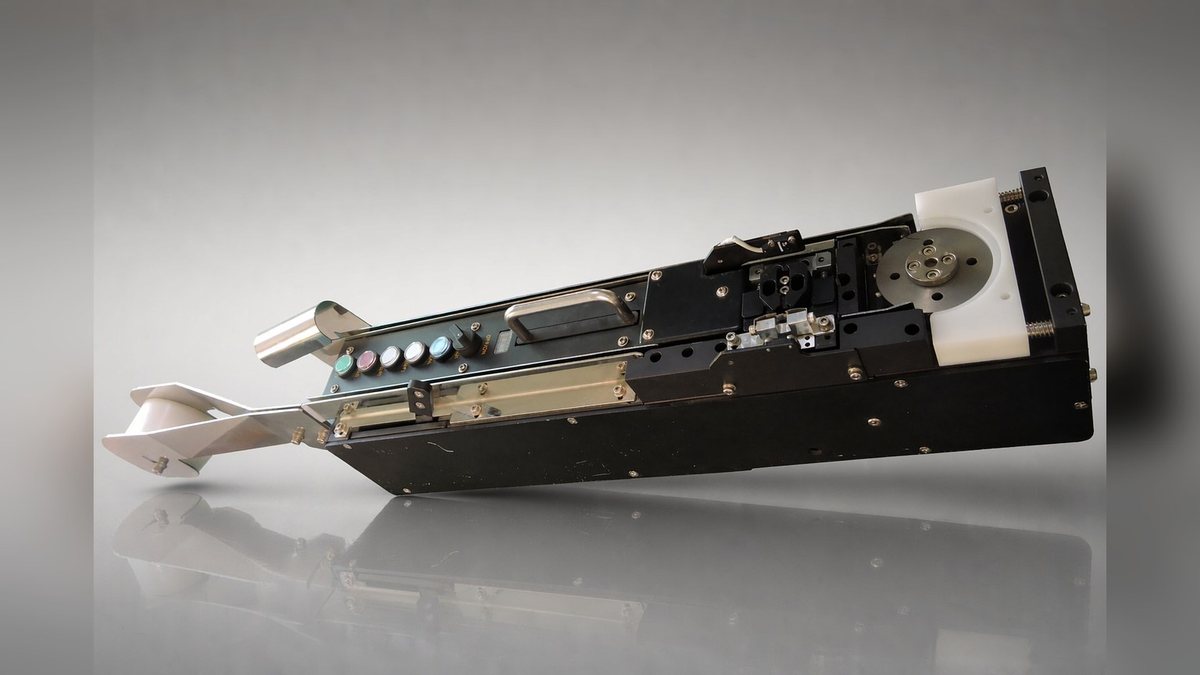

Production unit photos
Specifications
| Item | Specification |
|---|---|
| Model | LFS-150 L/R |
| L×W×H (mm) | 450 × 200 × 340 mm |
| Weight (kg) | 9.5 kg |
| Label width (mm) | 5–148 |
| Label length (mm) | L2–40 |
| Fiber sensors | 1–12 |
| Material lanes | 1–12 |
| Loading side | L = left loading, R = right loading |
Values are the manufacturer's published figures. Dimensions are the feeder's own outer envelope, not the space it needs on the platform. All models in this line →
Specifications common to the whole series
| Item | Specification |
|---|---|
| Positioning accuracy | ±0.2 mm |
| Feeding speed | 1–100, adjustable |
| Angle accuracy | ±0.5° |
| Position adjustment | Fiber sensor + touch panel |
| Feeding cycle | 0.1–2 s |
| Stripping method | Forward push stripping |
| Communication signals | Material signal + feeding signal |
| Supply voltage | DC 24 V |
| Supply current | 80 mA average; 1 A peak |
| Drive motor | Servo motor |
| Applicable package | Roll paper tape, packaging tape |
| Suitable material | Labels, metal pieces, foam, thermal pads |
| Reel diameter | Bore 76.2 mm, outer diameter 200 mm (other sizes on request) |
| Production counter | 0–9,999,999 cycles |
| Body material | Hard aluminium + steel parts, surface finished |
| Anti-stick platform | PTFE coated; white or red silicone optional |
| Operation | Touch panel, English / Chinese |
| Warranty | One year |
These values are the same for every model in this line. Only the table above differs between models. All models in this line →
Ask about this model
Send us the placement machine and the label size you run. We will confirm the model and quote.
