Multi-head vision labeling machine
Labeling Machine

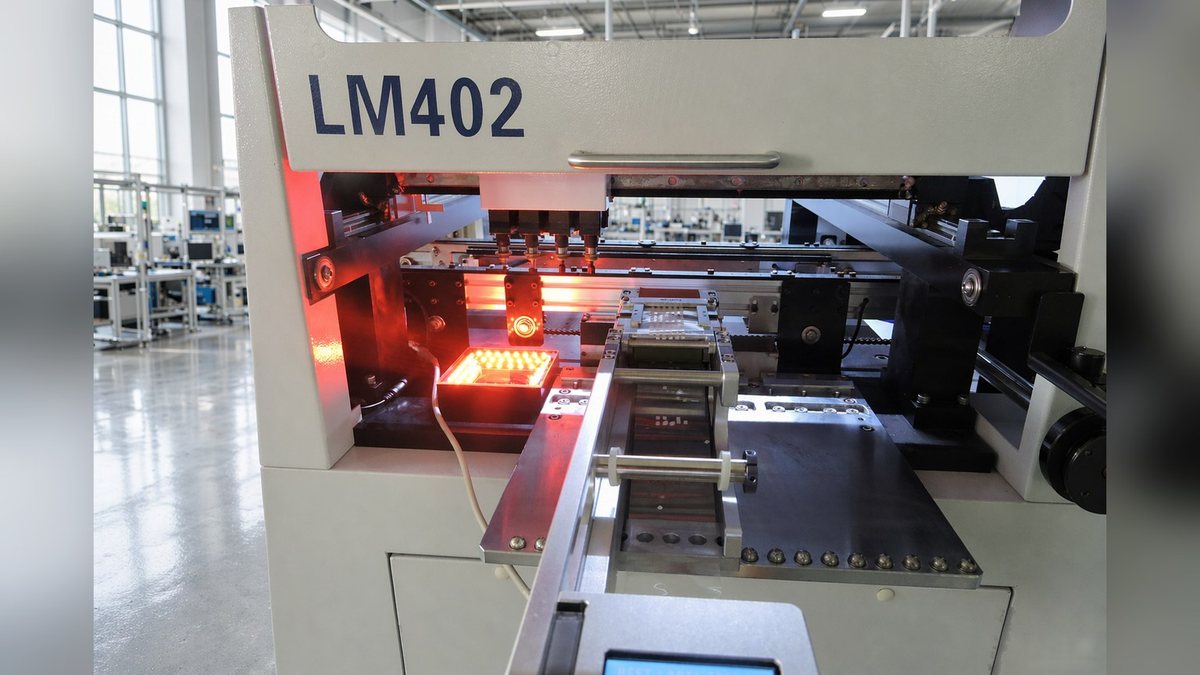

Production unit photos
Specifications
| Item | Specification |
|---|---|
| Model | LM402 |
| Type | Multi-head vision labeling machine |
| Workpiece range | Labels, metal pieces, film, tape, foam and PSA materials from 1×1 to 50×50 mm |
| Max placement area | X 100 mm × Y 500 mm (customizable) |
| Max XY travel | X 360 mm, Y 630 mm (customizable) |
| Positioning | XY servo, Z-axis stepper |
| Vision cameras | 6 cameras: 1 PCB camera, 4 small-part cameras, 1 large-part camera |
| Feeding | One 100 mm lane, three 60 mm lanes or four 32 mm lanes |
| Barcode reading (optional) | Camera-based; links in the required format and uploads to MES |
| Machine dimensions | 950 mm (L) × 950 mm (W) × 1200 mm (H) (customizable) |
Values are the manufacturer's published figures. Dimensions are the feeder's own outer envelope, not the space it needs on the platform. All models in this line →
Ask about this model
Send us the placement machine and the label size you run. We will confirm the model and quote.
